D24-30GB-XXDS

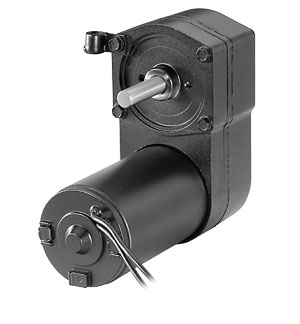

执行器, 旋转, 24 直流电压伏特, 100 in-lbs, 无反馈, Cable length 7 英寸, Connector

Specifications	价值
Cable length	7 英寸
Connection	Connector
Connector Type	Packard Electric 56 series 2984883 with terminal 2962987
Manual Override	否
Motor Control	None
Temperature Max	150 °F
Temperature Min	-15 °F
Weight	7.7 lb
材质	铜；钢；锌；铝合金；塑料
齿轮减速	30:1
电压	24 直流电压伏特
反馈	无反馈
防护等级	IP56

Performance	价值
Duty Cyle	25 %
Rotational Speed @ maximum load	75 转每分
Rotational Speed @ no load	140 转每分
负载，动态	100 in-lbs
负载，最大静态	100 in-lbs

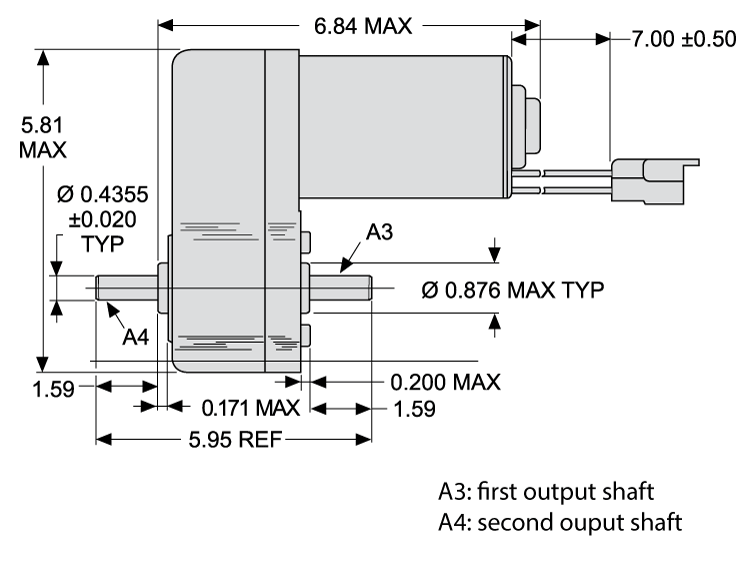

Dimensions
