M1-D012-0100-A04-LP-B

M1-D012-0100-A04-LP-B
M1-D012-0100-A04-LP-B

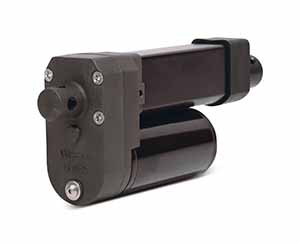

執行器, M-Track, 12 直流電壓伏特, 100 磅力, Connector

  • Internal limit switches automatically shut off the unit at end of stroke.
  • Optional potentiometer can provide positional location feedback.
  • Rod is non rotating during operation, can be rotated for mounting purposes.

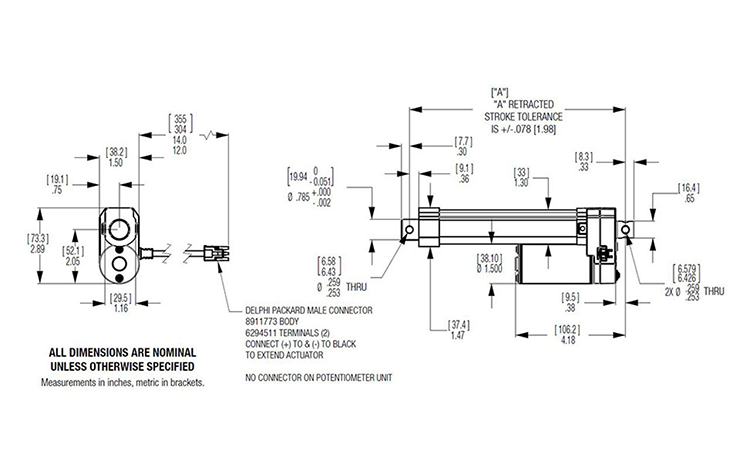

Dimensions

dimensions

Specifications

Specifications價值
Anti-rotation否
Brake無（自鎖）
ConnectionConnector
Connector TypePackard Electric Pack-Con male 8911773 with terminal 6294511
Protection, End-of-strokeElectronic
Protection, OverloadNone
Temperature Max-20 °F
Temperature Min150 °F
Temperature monitoring是
UPC編號889208215658
Weight2 lb
材質銅；鋼；鋅；鋁合金；塑料
電壓12 直流電壓伏特
防護等級IP65/IP69K
絲杠類型愛克米螺桿

Performance

Performance價值
Duty Cyle25 %
負載，動態100 磅力
負載，最大靜態300 磅力
