MLA23B39-1378S0250-C3-S03
Can't find what you're looking for? Go to the Product Selector
Motorized Lead screw Actuator, NEMA 23, 0.00689 英寸 Travel/Step, 2.5 英寸 Stroke, 1/4-20 x 0.500 in Male Thread End Mounting, Double Stack, 3.9 A
- Motor comes standard with ?ying leads
- Cover tube length (L) = stroke (S) + 1.74 in. (44.2 mm).
- Actuator configurations are able to withstand some radial and moment loading due to the bushing design included inside the assembly.
- 噪音更低。
| 尺寸 | 價值 |
|---|---|
| [L] | 4.24 英寸 |
| [M] | 2.59 英寸 |
| [S] | 2.5 英寸 |
| [T] | 1/4-20 Male Thread |
| Screw, Lead | 1.378 英寸 |
| Travel/Step | 0.00689 英寸 |

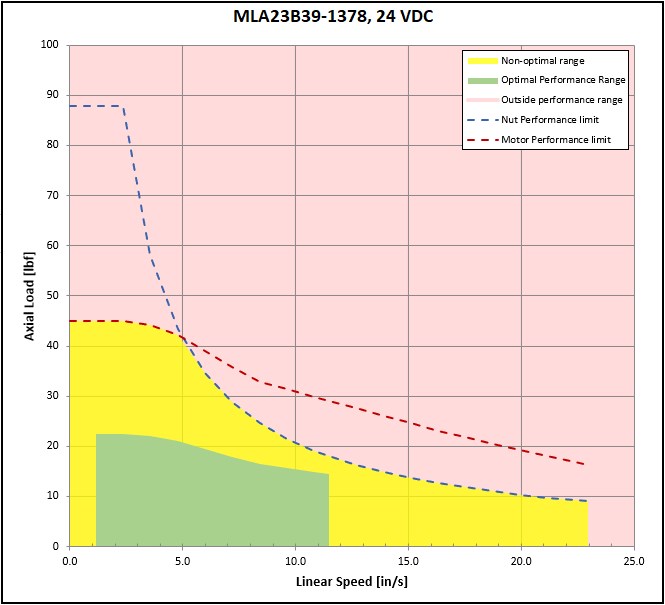

| Performance | 價值 |
|---|---|
| Load, Max @ Max Speed | 14.5 磅力 |
| Load, Max @ Min Speed | 22.5 磅力 |
| Max Speed (Recommended) | 11.48 英寸每秒 |
| Motor, Step Angle | 1.8 ° |
| Screw, Lead Accuracy | 0.01 in/ft |
| Travel/Step | 0.00689 英寸 |
