Integrated encoders enhance your linear motion applications with feedback information

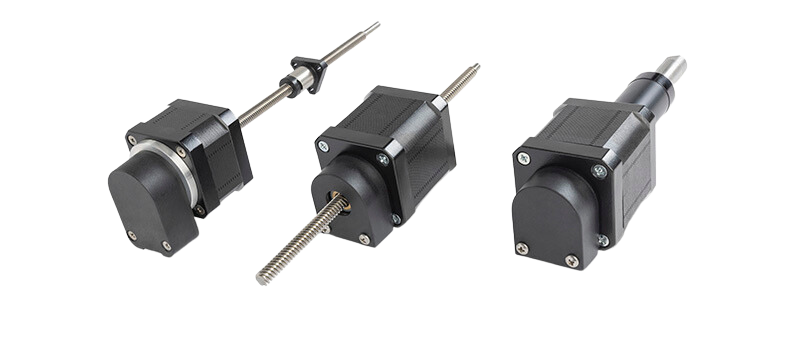

Imagine how useful it would be to monitor speed, direction, distance and position for your linear motion applications. These benefits can be easily realized with the simple integration of encoders into any Thomson stepper motor linear actuator configuration (MLS, MLN or MLA). Encoders, which are seamlessly pre-assembled onto the rear of motors, translate rotary motion into a digital signal to deliver real-time feedback information.

Countless industries benefit from encoder technology – from mission-critical machines in the most rugged environments to routine workplace devices that demand uncompromising repeatability.

Is your application a good fit for an encoder? Watch this video to learn more.

可用配置
、電機規格	CPR	索引	輸出	編碼器型號
NEMA 8	100, 108, 120, 125, 128, 144, 200, 248, 250, 256, 296, 300, 360, 400, 500, 512, 720, 800, 1000	無索引	單端	E4T
NEMA 11, 14, 17	32, 50, 96, 100, 120, 192, 200, 250, 256, 360, 400, 500, 512, 540, 720, 900, 1000, 1024, 1250, 2000, 2048, 2500, 4000, 4096, 5000	索引或無索引	單端	E2
NEMA 11, 14, 17	32, 50, 96, 100, 192, 200, 250, 256, 360, 400, 500, 512, 540, 720, 900, 1000, 1024, 1250, 2000, 2048, 2500, 4000, 4096, 5000*	索引或無索引	單端或差分	E5
NEMA 17, 23	64, 100, 200, 400, 500, 512, 1000, 1024, 1800, 2000, 2048, 2500, 3600, 4000, 4096, 5000, 7200, 8000, 8192, 10000*	索引或無索引	單端	E3
NEMA 17, 23	64, 100, 200, 400, 500, 512, 800, 1000, 1024, 1800, 2000, 2048, 2500, 3600, 4000, 4096, 5000, 7200, 8000, 8192, 10000*	索引或無索引	單端或差分	E6
*僅提供無索引的CPR
**僅提供帶索引的CPR

彈出查看

Contact us by filling out the form below with your design requirements, and our experienced support team will review them immediately.

您需要什么幫助？

已有圖紙？可在下方上傳圖紙，我們經驗豐富的設計團隊將盡快查看并回復。

選擇文件未選中文件

刪除文件

您是否希望接收Thomson電子郵件新聞通訊？這些郵件包括應用案例、在線培訓機會、新產品信息和在線設計工具鏈接。

是否

更多有關我們?nèi)绾问褂煤吞幚砟膫€(gè)人數據或如何撤銷同意服務協議的信息，請參考我們的隱私聲明.

可用配置
電機規格	CPR	索引	輸出	編碼器型號
NEMA 8	100, 108, 120, 125, 128, 144, 200, 248, 250, 256, 296, 300, 360, 400, 500, 512, 720, 800, 1000	索引或無索引	單端或差分	E4T
NEMA 11, 14, 17	32, 50, 96, 100, 120, 192, 200, 250, 256, 360, 400, 500, 512, 540, 720, 900, 1000, 1024, 1250, 2000, 2048, 2500, 4000, 4096, 5000	索引或無索引	單端	E2
NEMA 11, 14, 17	32, 50, 96, 100, 192, 200, 250, 256, 360, 400, 500, 512, 540, 720, 900, 1000, 1024, 1250, 2000, 2048, 2500, 4000, 4096, 5000*	索引或無索引	單端或差分	E5
NEMA 17, 23	64, 100, 200, 400, 500, 512, 1000, 1024, 1800, 2000, 2048, 2500, 3600, 4000, 4096, 5000, 7200, 8000, 8192, 10000*	索引或無索引	單端	E3
NEMA 17, 23	64, 100, 200, 400, 500, 512, 800, 1000, 1024, 1800, 2000, 2048, 2500, 3600, 4000, 4096, 5000, 7200, 8000, 8192, 10000*	索引或無索引	單端或差分	E6
*僅提供無索引CPR
**僅提供帶索引CPR
